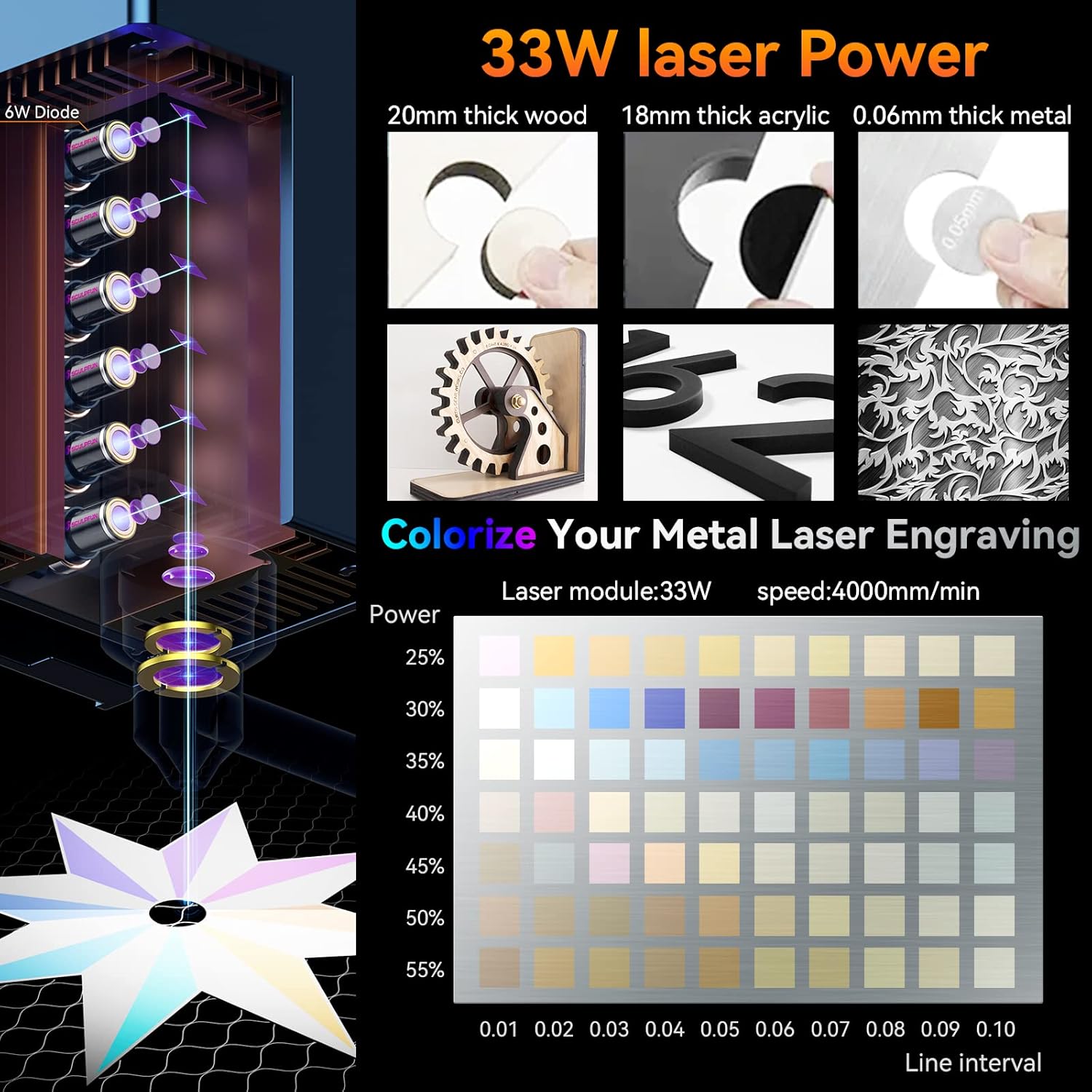

SCULPFUN S30 Ultra 33W Laser Engraver, With Automatic Air Assist System Replaceable Lens Laser cutter, Laser Engraving Machine For Acrylic Wood, 600x600mm Engraving Area

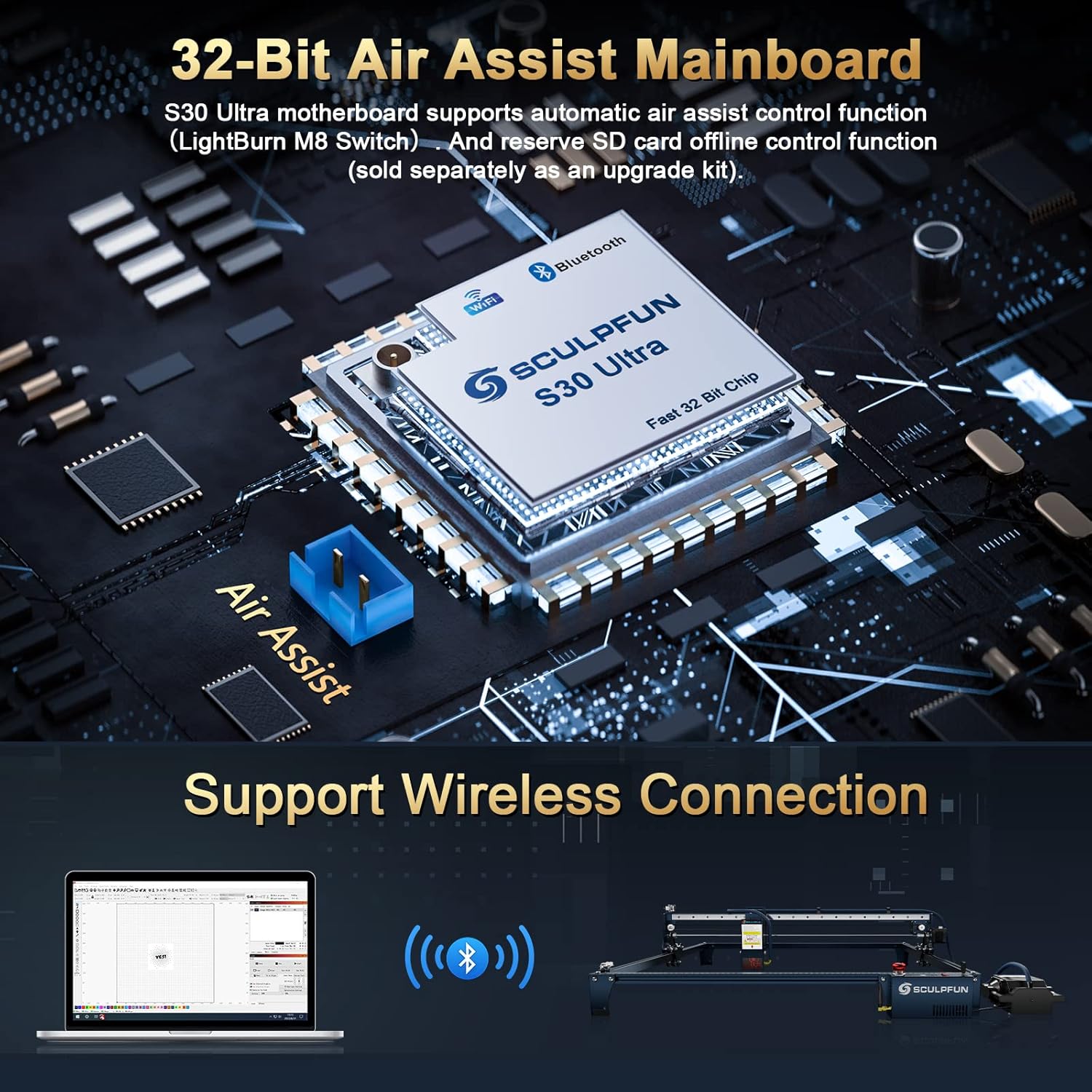

Product model: SCULPFUN S30 Ultra-33WLaser information:Diode laser output power: 33W (note that this is light energy not electrical energy)Laser focus: 0.08x0.08mmLaser wavelength: 455±5nmFocusing method: fixed focus column + sliding deviceLaser protective cover: Equipped with a detachable laser protective cover to protect the eyes. You can adjust it up and down, or remove the eye shield.Machine information:Engraving accuracy: 0.005mmEngraving area size: standard version is 600x600mmMachine electric power: about 156WAir pump:Type: main board controlled air pump, voltage 24V, flow rate 30L/minAir hose inner diameter: 7.5mmMotherboard: 32-bit air-assisted motherboard, supports Bluetooth wireless connection.Engravable/cutting material:Carving materials: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, stone, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramics, dark stoneCutting materials: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo chips, leather, some plastic boards, PCB boardsOperating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other picture formats.Data transmission method: USB connection or Bluetooth wireless connectionPower supply: Power input: 100-240V AC, 50/60HZ Output: 24V 7APackage weight: 9.9kgPacking size: 865*247*235mmPrecautions:●Because of the powerful laser power, it is forbidden to run the engraving machine without supervision. Pause it if you're not around.●Detailed instructions for using the machine, please refer to the instruction manual for parameter settings.●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.●Do not touch the laser with your hands, or you may burn your hands.●Please avoid strong impact on the machine.●Children under the age of 14 are prohibited from using this product, and children over the age of 14 need adult supervision.●Do not apply the laser directly to any specular reflective objects, which may cause injury to the operator or burn the laser.

• 【600x600mm engraving area】the real engraving area is 600x600mm, which makes many of your works not limited by the area, and you can produce most of the large-scale cutting works. In addition, the 600x600mm area is very sufficient, and the service life is extremely long, and there is almost no need to upgrade the structure in future use.
• 【Professional safety design】S30 Ultra series is equipped with emergency stop switch and safety child lock. In an emergency, tapping the emergency stop switch can stop the machine; after pulling out the key, the machine cannot be turned on, which can prevent children from turning it on by mistake.
• 【One series One structure, easy to upgrade】S30 Ultra series models keep high compatibility in design, S30 Ultra 11W/22W/33W power adapter, structure, and laser cable are all the same. In future upgrades, 11W- 22W-33W you only need to replace the laser head without any other changes.
• 【Enhanced 42-bit stepping motor】Enhanced 42-bit stepping motor provides sufficient power to make the machine move at high speed. The torque reaches 4.2 Kg·cm (ordinary machines are 3.1 Kg·cm). In future upgrades, even if the laser or the load becomes heavier, there is no need to replace the motor.
• 【Built-in high-pressure air-assisted nozzle】S30 Ultra series is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving cutting efficiency, and the cutting speed is more than 5 times faster than that without air assist. The powerful airflow blows away the residue, making the cutting surface very clean.
• 【Solid and durable frame】The S30 series is made of high-strength aluminum alloy, and its frame can withstand a weight of up to 50KG without damage, which is very durable. The frame can be used for a long time and maintain high precision, when the machine needs to be upgraded, only the latest laser needs to be upgraded.
