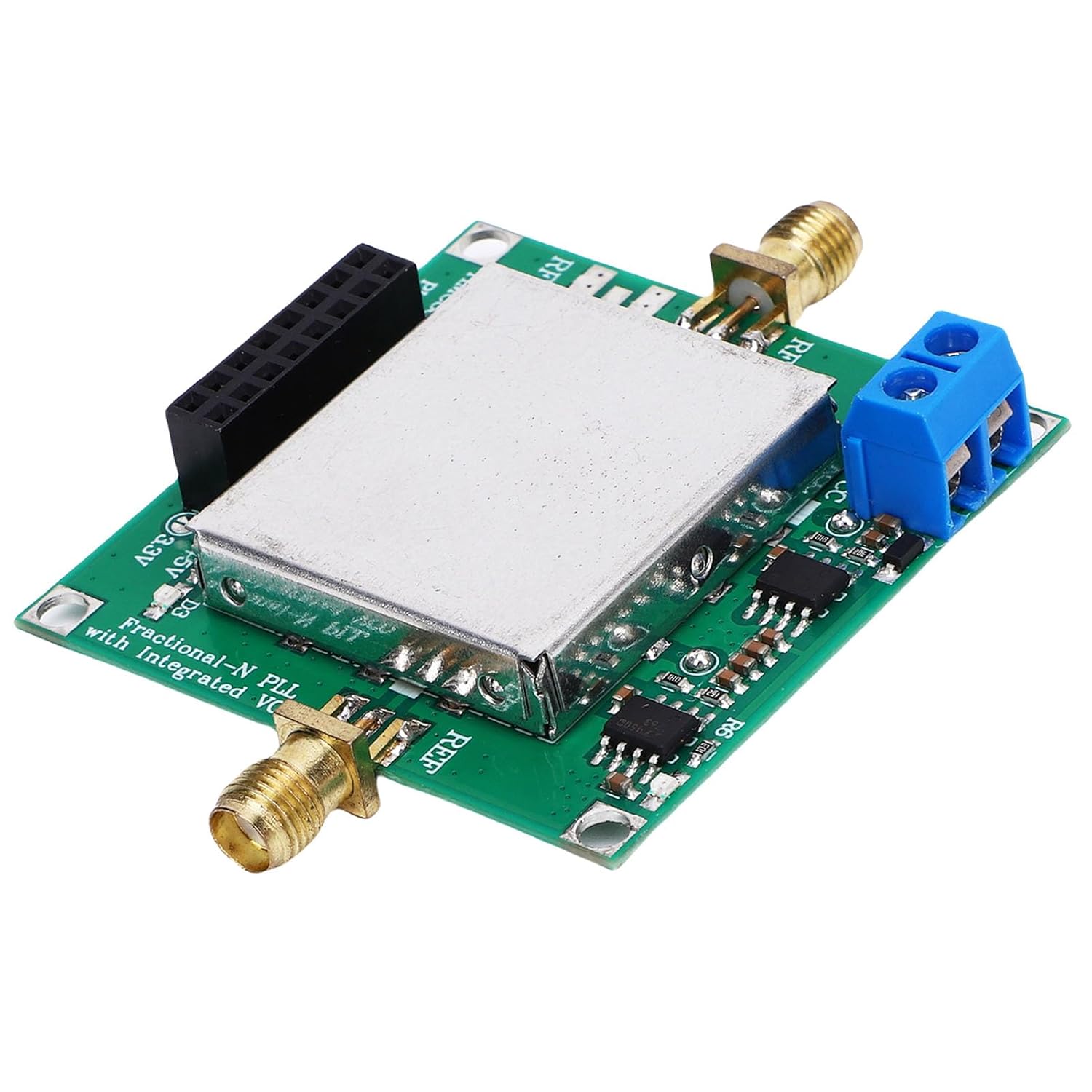

CUIFATI Lip of Loop Module, Phase Lock Loop Frequency Generator 25-6000 MHz for Cable TV Equipment

1. Wide Frequency Range And Versatility: The locking loop module is a low noise, broadband fractional N phase locked loop (PLL) that integrates a voltage controlled oscillator (VCO) with a frequency range of 1500 MHz to 3000 MHz. 2. Excellent Phase Noise And Performance: With an impressive noise floor of less than -170 dBc/Hz, this PLL module minimizes blocking effects, enhances sensitivity, and improves transmit spectrum purity. 3. Enhanced Loop Bandwidth And Spectrum Performance: Featuring an integrated phase detector (PD) and modulator capable of operating at frequencies up to 100 MHz, the locking loop module achieves wider loop bandwidths and excellent performance. 4. Flexible RF Output Power Control: The module offers a unique RF output power control feature with adjustable levels from 0 to 9 dB in 3 dB increments. This flexibility allows users to tailor the output power to specific system requirements, coupled with a mute function for quiet operation when necessary. 5. Accurate Frequency Generation: The locking loop module supports an accurate frequency mode that enables users to generate output frequencies with zero Hz frequency error. This level of accuracy is essential for applications requiring accurate timing signals. Specification: Item Type: Locking Loop Module Model: HMC833LP6GE Material: PCB Frequency Range: 25 MHz-6000 MHz VCO Range: 1500 MHz-3000 MHz Phase Noise Performance: Application: 1. Cellular Communication Infrastructure 2. Microwave Radio 3. WiMax, WiFi 4. Communication Testing Equipment 5. Cable TV Equipment 6. DDS Replacement 7. Aerospace 8. Tunable Voltage Source with No Spurious Performance How to Use: Connect to use. PackageList: 1 x Low Phase Noise Frequency Generator Module

• Wide Frequency Range And Versatility: The locking loop module is a low noise, broadband fractional N phase locked loop (PLL) that integrates a voltage controlled oscillator (VCO) with a frequency range of 1500 MHz to 3000 MHz.
• Enhanced Loop Bandwidth And Spectrum Performance: Featuring an integrated phase detector (PD) and modulator capable of operating at frequencies up to 100 MHz, the locking loop module achieves wider loop bandwidths and excellent performance.
• Accurate Frequency Generation: The locking loop module supports an accurate frequency mode that enables users to generate output frequencies with zero Hz frequency error. This level of accuracy is essential for applications requiring accurate timing signals.
• Flexible RF Output Power Control: The module offers a unique RF output power control feature with adjustable levels from 0 to 9 dB in 3 dB increments. This flexibility allows users to tailor the output power to specific system requirements, coupled with a mute function for quiet operation when necessary.
• Excellent Phase Noise And Performance: With an impressive noise floor of less than -170 dBc/Hz, this PLL module minimizes blocking effects, enhances sensitivity, and improves transmit spectrum purity.
